This is a three button remote flip key for the Ford Mondeo used from 2007 to 2010.
It is complete with the following:
- Remote three button case with battery terminals
- Remote three button circuit board - 433.92 MHz for the UK and Europe
- Lithium battery CR2032 3V
- Flip key housing with uncut key blade
- Transponder chip - located within the flip key housing
The key can be cut if required.
The key code will take the following format:
- A four digit number in the range 0001 to 4000.
For example: 1141 as shown below.
The key code is recorded on a black plastic tag like this:
This tag would have been attached to the keys when the car was new.
The key can be cut from the key code or a decent digital picture of an existing key for the vehicle.
A picture like this taken from the top:
If the key is cut from a picture the key code will be provided. If you ever require another key then one can be cut from this key code.
Additional keys are programmed into a Ford Mondeo from 2007 to 20010 using a diagnostic machine plugged into the vehicle.
Alternatively... if a key that starts the vehicle is brought or sent to us we have the facilities to copy the transponder chip within it onto a new one. The new key will then start the vehicle without any further programming being required. Email us at enquiries@keymoon.uk for further information.

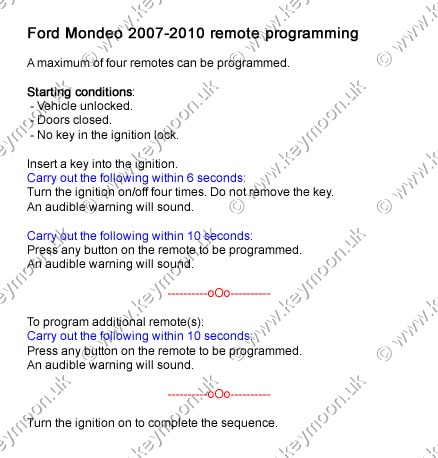

You can program additional remotes into a Ford Mondeo from 2007 to 2010 using a manual procedure.
The remote programming procedure is available here:
Ford Mondeo 2007-2010 remote programming
If you have a question about this item then please send a message to: enquiries@keymoon.uk
